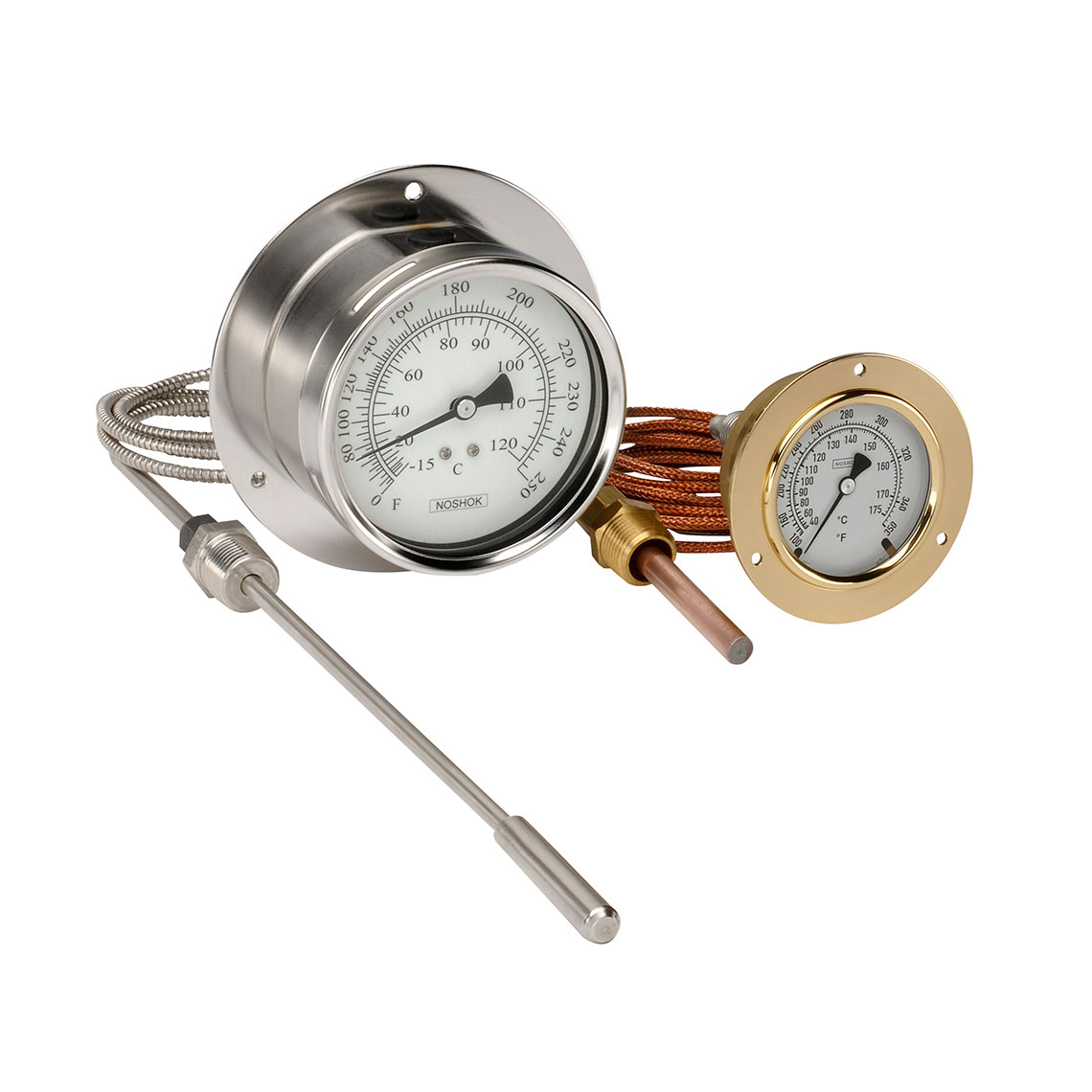

  • 300 Series Vapor Actuated Remote Dial Indicating Thermometers
  • 300 Series Vapor Actuated Remote Dial Indicating Thermometers - 2
  • Indicates media temperature using a temperature-actuated liquid in the sensing element and a highly accurate, high quality pressure gauge
  • As the media temperature increases, the capillary fill fluid vaporizes, increasing pressure in the Bourdon tube to activate the movement and pointer for proper indication
  • Brass, stainless steel, or phenolic case
  • Dry or liquid filled
  • Bottom, back or lower back connected
  • The dial scale graduations are non-linear, therefore the highest degree of accuracy and readability is found in the upper half of the scale
1 - 25 of 35 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items
Clear Filter

Temperature [Min] (ºF)

Temperature [Max] (ºF)

Gauge Fill Fluids

Mounting Options

Capillary Length (ft)

Bulb Dimensions (in)

Part Number

Description

Temperature [Min]

Temperature [Max]

Capillary Length

Bulb Dimensions

25-310-0-1-7-2-15-3-2 N/A 2-1/2", 30 to 240 ºF/ºC Armored Copper Capillary, 15 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Dry and Chrome Front Flange N/A 30 ºF N/A 240 ºF N/A 15 ft N/A 4-1/2 x 3/8 in
25-310-0-1-7-2-6-3-1 N/A 2-1/2", 30 to 240 ºF/ºC Armored Copper Capillary, 6 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 2-5/8 x 3/8" Vapor Thermometer with Dry and Chrome Front Flange N/A 30 ºF N/A 240 ºF N/A 6 ft N/A 2-5/8 x 3/8 in
25-310-1-1-10-2-15-3-2 N/A 2-1/2", 100 to 350 ºF/ºC Armored Copper Capillary, 15 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill and Chrome Front Flange N/A 100 ºF N/A 350 ºF N/A 15 ft N/A 4-1/2 x 3/8 in
25-310-1-1-7-2-35-3-2 N/A 2-1/2", 30 to 240 ºF/ºC Armored Copper Capillary, 35 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill and Chrome Front Flange N/A 30 ºF N/A 240 ºF N/A 35 ft N/A 4-1/2 x 3/8 in
25-310-1-1-7-2-40-3-2 N/A 2-1/2", 30 to 240 ºF/ºC Armored Copper Capillary, 40 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill and Chrome Front Flange N/A 30 ºF N/A 240 ºF N/A 40 ft N/A 4-1/2 x 3/8 in
25-310-1-1-8-2-40-3-2 N/A 2-1/2", 30 to 300 ºF/ºC Armored Copper Capillary, 40 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill and Chrome Front Flange N/A 30 ºF N/A 300 ºF N/A 40 ft N/A 4-1/2 x 3/8 in
25-310-1-1-9-2-40-3-2 N/A 2-1/2", 50 to 350 ºF/ºC Armored Copper Capillary, 40 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill and Chrome Front Flange N/A 50 ºF N/A 350 ºF N/A 40 ft N/A 4-1/2 x 3/8 in
25-310-1-1-9-2-50-3-2 N/A 2-1/2", 50 to 350 ºF/ºC Armored Copper Capillary, 50 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill and Chrome Front Flange N/A 50 ºF N/A 350 ºF N/A 50 ft N/A 4-1/2 x 3/8 in
25-310-1-2-3-2-25-3-2 N/A 2-1/2", 0 to 250 ºF/ºC Armored Copper Capillary, 25 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill and Brass Front Flange N/A 0 ºF N/A 250 ºF N/A 25 ft N/A 4-1/2 x 3/8 in
25-310-1-4-10-2-15-3-1 N/A 2-1/2", 100 to 350 ºF/ºC Armored Copper Capillary, 15 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 2-5/8 x 3/8" Vapor Thermometer with Glycerin Fill, Chrome Bezel, and U-Clamp N/A 100 ºF N/A 350 ºF N/A 15 ft N/A 2-5/8 x 3/8 in
25-310-1-4-10-2-20-3-2 N/A 2-1/2", 100 to 350 ºF/ºC Armored Copper Capillary, 20 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill, Chrome Bezel, and U-Clamp N/A 100 ºF N/A 350 ºF N/A 20 ft N/A 4-1/2 x 3/8 in
25-310-1-4-10-2-50-3-2 N/A 2-1/2", 100 to 350 ºF/ºC Armored Copper Capillary, 50 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill, Chrome Bezel, and U-Clamp N/A 100 ºF N/A 350 ºF N/A 50 ft N/A 4-1/2 x 3/8 in
25-310-1-4-8-2-15-3-1 N/A 2-1/2", 30 to 300 ºF/ºC Armored Copper Capillary, 15 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 2-5/8 x 3/8" Vapor Thermometer with Glycerin Fill, Chrome Bezel, and U-Clamp N/A 30 ºF N/A 300 ºF N/A 15 ft N/A 2-5/8 x 3/8 in
25-310-1-4-8-2-20-3-2 N/A 2-1/2", 30 to 300 ºF/ºC Armored Copper Capillary, 20 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill, Chrome Bezel, and U-Clamp N/A 30 ºF N/A 300 ºF N/A 20 ft N/A 4-1/2 x 3/8 in
25-310-1-4-8-2-30-3-2 N/A 2-1/2", 30 to 300 ºF/ºC Armored Copper Capillary, 30 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill, Chrome Bezel, and U-Clamp N/A 30 ºF N/A 300 ºF N/A 30 ft N/A 4-1/2 x 3/8 in
25-310-1-4-8-2-40-3-2 N/A 2-1/2", 30 to 300 ºF/ºC Armored Copper Capillary, 40 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with Glycerin Fill, Chrome Bezel, and U-Clamp N/A 30 ºF N/A 300 ºF N/A 40 ft N/A 4-1/2 x 3/8 in
25-310-2-1-10-2-20-3-2 N/A 2-1/2", 100 to 350 ºF/ºC Armored Copper Capillary, 20 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with -40 Degree Service Fill and Chrome Front Flange N/A 100 ºF N/A 350 ºF N/A 20 ft N/A 4-1/2 x 3/8 in
25-310-2-1-10-2-40-3-2 N/A 2-1/2", 100 to 350 ºF/ºC Armored Copper Capillary, 40 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with -40 Degree Service Fill and Chrome Front Flange N/A 100 ºF N/A 350 ºF N/A 40 ft N/A 4-1/2 x 3/8 in
25-310-2-1-10-2-40-3-5 N/A 2-1/2", 100 to 350 ºF/ºC Armored Copper Capillary, 40 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 6" x 3/8" Vapor Thermometer with -40 Degree Service Fill and Chrome Front Flange N/A 100 ºF N/A 350 ºF N/A 40 ft N/A 6 x 3/8 in
25-310-2-1-7-2-10-3-1 N/A 2-1/2", 30 to 240 ºF/ºC Armored Copper Capillary, 10 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 2-5/8" x 3/8" Vapor Thermometer with -40 Degree Service Fill and Chrome Front Flange N/A 30 ºF N/A 240 ºF N/A 10 ft N/A 2-5/8 x 3/8 in
25-310-2-1-7-2-30-3-4 N/A 2-1/2", 30 to 240 ºF/ºC Armored Copper Capillary, 30 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 3-1/2" x 3/8" Vapor Thermometer with -40 Degree Service Fill and Chrome Front Flange N/A 30 ºF N/A 240 ºF N/A 30 ft N/A 3-1/2 x 3/8 in
25-310-2-1-7-2-40-3-2 N/A 2-1/2", 30 to 240 ºF/ºC Armored Copper Capillary, 40 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with -40 Degree Service Fill and Chrome Front Flange N/A 30 ºF N/A 240 ºF N/A 40 ft N/A 4-1/2 x 3/8 in
25-310-2-1-9-2-15-3-2 N/A 2-1/2", 50 to 350 ºF/ºC Armored Copper Capillary, 15 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with -40 Degree Service Fill and Chrome Front Flange N/A 50 ºF N/A 350 ºF N/A 15 ft N/A 4-1/2 x 3/8 in
25-310-2-4-10-2-15-3-2 N/A 2-1/2", 100 to 350 ºF/ºC Armored Copper Capillary, 15 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 4-1/2" x 3/8" Vapor Thermometer with -40 Degree Service Fill, Chrome Bezel, and U-Clamp N/A 100 ºF N/A 350 ºF N/A 15 ft N/A 4-1/2 x 3/8 in
25-310-2-4-10-2-15-3-5 N/A 2-1/2", 100 to 350 ºF/ºC Armored Copper Capillary, 15 ft, 1/2" National Pipe Thread (NPT) Union Copper Bulb, 6" x 3/8" Vapor Thermometer with -40 Degree Service Fill, Chrome Bezel, and U-Clamp N/A 100 ºF N/A 350 ºF N/A 15 ft N/A 6 x 3/8 in
