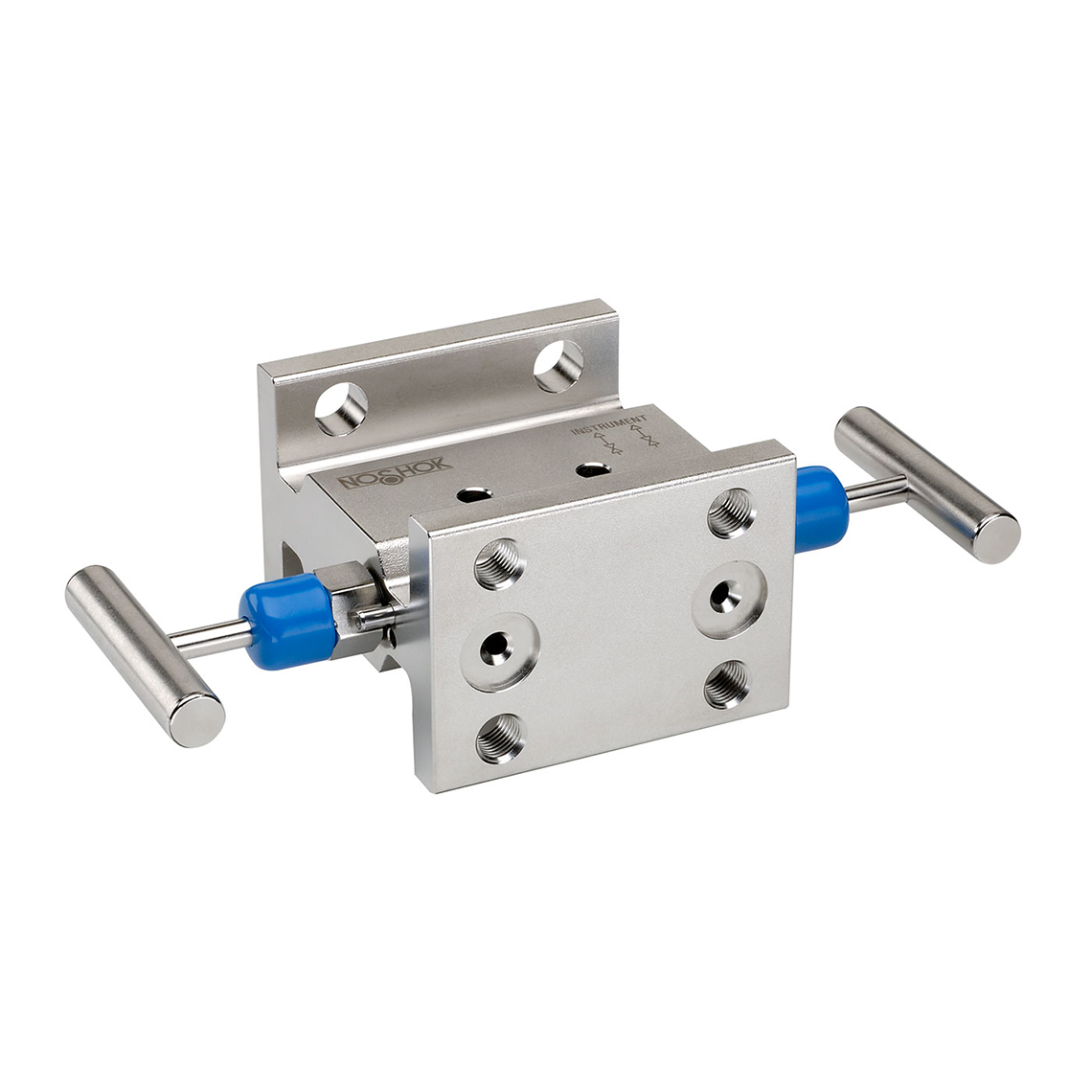

  • 2020/2120 Series Liquid Level 2 Manifold Valves with Hard Seat and Soft Seat
  • Designed for use with differential pressure transmitters in liquid level applications
  • Available in either single flange or double flange connection for direct installation
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Part Number

Description

Seat

Valve Type

Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature

Flow Coefficient Cv

2020-MFC N/A Hard Seat, Flange x 1/2" National Pipe Thread (NPT) Female, Steel, 0.187" Orifice 2 Manifold Valve N/A Hard Seat N/A Flange-Female N/A 10,000 psi N/A 0.44
2020-MFS N/A Hard Seat, Flange x 1/2" National Pipe Thread (NPT) Female, 316 Stainless Steel, 0.187" Orifice 2 Manifold Valve N/A Hard Seat N/A Flange-Female N/A 10,000 psi N/A 0.44
2020-MMC N/A Hard Seat, Flange x Flange, Steel, 0.187" Orifice 2 Manifold Valve N/A Hard Seat N/A Flange-Flange N/A 10,000 psi N/A 0.44
2020-MMS N/A Hard Seat, Flange x Flange, 316 Stainless Steel, 0.187" Orifice 2 Manifold Valve N/A Hard Seat N/A Flange-Flange N/A 10,000 psi N/A 0.44
2120-MFC N/A Soft Seat, Flange x 1/2" National Pipe Thread (NPT) Female, Steel, 0.187" Orifice 2 Manifold Valve N/A Soft Seat N/A Flange-Female N/A 6,000 psi N/A 0.76
2120-MFS N/A Soft Seat, Flange x 1/2" National Pipe Thread (NPT) Female, 316 Stainless Steel, 0.187" Orifice 2 Manifold Valve N/A Soft Seat N/A Flange-Female N/A 6,000 psi N/A 0.76
2120-MMC N/A Soft Seat, Flange x Flange, Steel, 0.187" Orifice 2 Manifold Valve N/A Soft Seat N/A Flange-Flange N/A 6,000 psi N/A 0.76
2120-MMS N/A Soft Seat, Flange x Flange, 316 Stainless Steel, 0.187" Orifice 2 Manifold Valve N/A Soft Seat N/A Flange-Flange N/A 6,000 psi N/A 0.76
