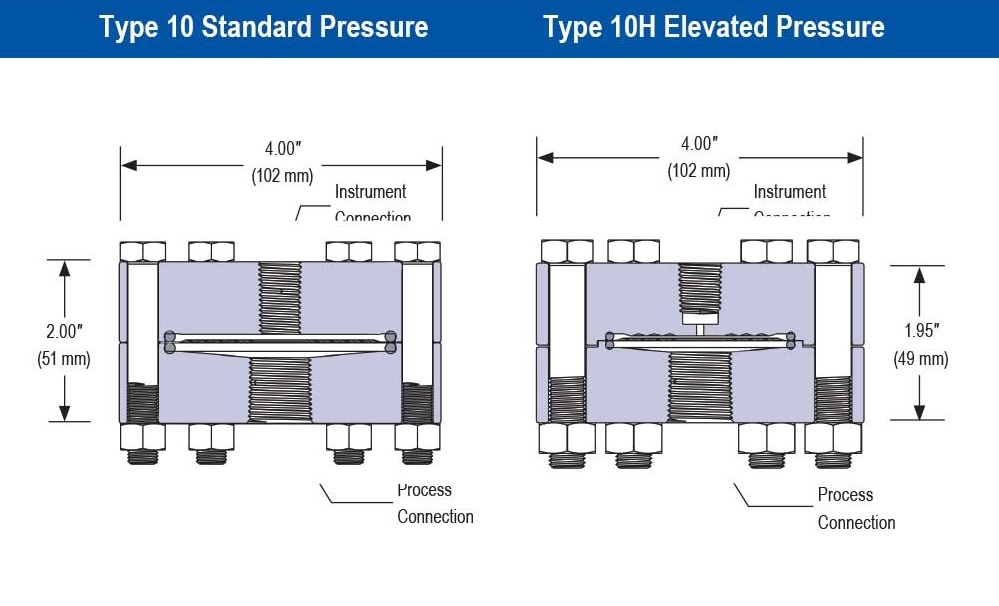

Type 10/10H Standard and Elevated Pressure, Bolted, Replaceable Diaphragm Seals On NOSHOK, Inc.

NOSHOK'S COVID-19 Response

Designed to isolate the pressure measuring instrument from high temperatures, or corrosive or viscous process media
Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
Utilizes a replaceable diaphragm clamped between the flanged metal housings with an o-ring seal to create a leak-free union
Process connection sizes from 1/4" NPT through 1-1/2" NPT

1 - 2 of 2 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

Part Number	Description	O-Rings Material	Upper Housing Material	Process Connection Size	Instrument Connection Size

10-04C-S-T-04S-2F	N/A 1/2" NPT Instrument Connection, Carbon Steel, 1/2" NPT Process Connection, 316 Stainless Steel, 1/4" NPT Flushing Connection Type 10 Diaphragm Seal with 316 Stainless Steel Diaphragm and Polytetrafluoroethylene (PTFE) O-Ring	N/A Polytetrafluoroethylene (PTFE)	N/A Carbon Steel	N/A 1/2 in	N/A 1/2 in
10H-04S-S-B-04S-1F	N/A 1/2" NPT Instrument Connection, 316 Stainless Steel, 1/2" NPT Process Connection, 316 Stainless Steel, 1/8" NPT Flushing Connection Type 10H Diaphragm Seal with 316 Stainless Steel Diaphragm and Nitrile Butadiene Rubber (NBR) O-Ring	N/A Nitrile Rubber (NBR)	N/A 316 Stainless Steel	N/A 1/2 in	N/A 1/2 in
