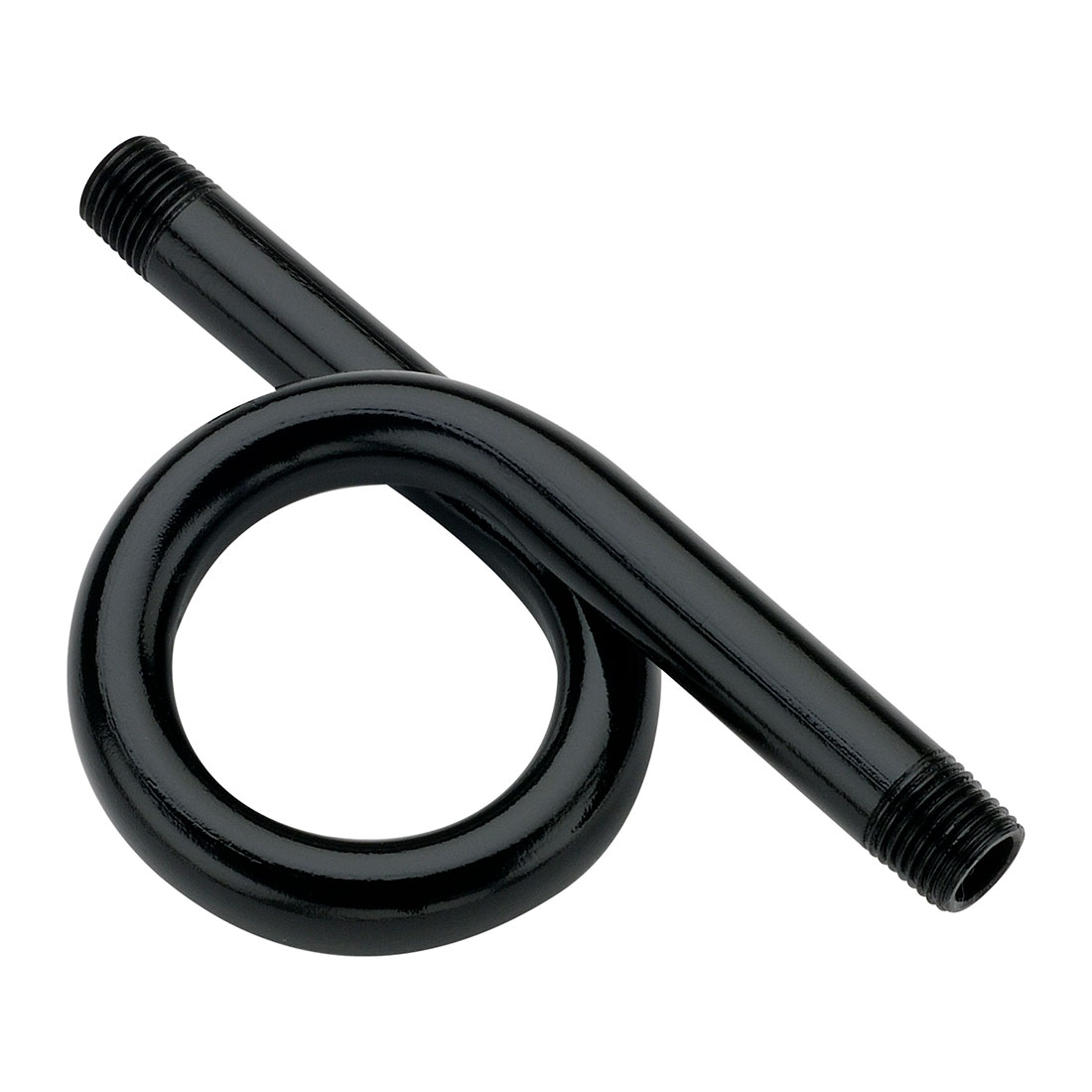

  • Pigtail Steam Syphons
  • Protect the instrument from the damaging effects of high temperature steam
  • Recommended for use in steam applications and systems that contain superheated vapor
  • Available in 1/4" and 1/2" NPT sizes in welded Steel, welded 316 Stainless Steel or seamless 316 stainless steel with rating to 3,800 psi at 850 ºF
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Part Number

Description

Material

Connection Size

Dimension A

Dimension B

1025 N/A Welded Steel, Schedule 40, 180 Degree Coil Style, 1/4" National Pipe Thread (NPT) Pigtail Steam Syphon N/A Welded Steel, Schedule 40 N/A 1/4 in N/A 5.5 in139.7 mm N/A 2.5 in63.5 mm
1050 N/A Welded Steel, Schedule 80, 180 Degree Coil Style, 1/2" National Pipe Thread (NPT) Pigtail Steam Syphon N/A Welded Steel, Schedule 80 N/A 1/2 in N/A 8.875 in225.425 mm N/A 4.0 in101.6 mm
1225 N/A Welded Steel, Schedule 40, 90 Degree Coil Style, 1/4" National Pipe Thread (NPT) Pigtail Steam Syphon N/A Welded Steel, Schedule 40 N/A 1/4 in N/A 4.25 in107.95 mm N/A 2.625 in66.675 mm
1250 N/A Welded Steel, Schedule 80, 90 Degree Coil Style, 1/2" National Pipe Thread (NPT) Pigtail Steam Syphon N/A Welded Steel, Schedule 80 N/A 1/2 in N/A 6.5 in165.0 mm N/A 4.0 in101.6 mm
1425 N/A Welded Steel, Schedule 40, 270 Degree Coil Style, 1/4" National Pipe Thread (NPT) Pigtail Steam Syphon N/A Welded Steel, Schedule 40 N/A 1/4 in N/A 4.5 in114.3 mm N/A 2.625 in66.675 mm
2025 N/A Welded 316 Stainless Steel, Schedule 40, 180 Degree Coil Style, 1/4" National Pipe Thread (NPT) Pigtail Steam Syphon N/A Welded 316 Stainless Steel, Schedule 40 N/A 1/4 in N/A 5.5 in139.7 mm N/A 2.5 in63.5 mm
2050 N/A Seamless 316 Stainless Steel, Schedule 80, 180 Degree Coil Style, 1/2" National Pipe Thread (NPT) Pigtail Steam Syphon N/A Seamless 316 Stainless Steel, Schedule 80 N/A 1/2 in N/A 8.875 in225.425 mm N/A 4.0 in101.6 mm
2225 N/A Welded 316 Stainless Steel, Schedule 40, 90 Degree Coil Style, 1/4" National Pipe Thread (NPT) Pigtail Steam Syphon N/A Welded 316 Stainless Steel, Schedule 40 N/A 1/4 in N/A 4.25 in107.95 mm N/A 2.625 in66.675 mm
2325 N/A Welded 316 Stainless Steel, Schedule 40, 270 Degree Coil Style, 1/4" National Pipe Thread (NPT) Pigtail Steam Syphon N/A Welded 316 Stainless Steel, Schedule 40 N/A 1/4 in N/A 4.5 in114.3 mm N/A 2.625 in66.675 mm
