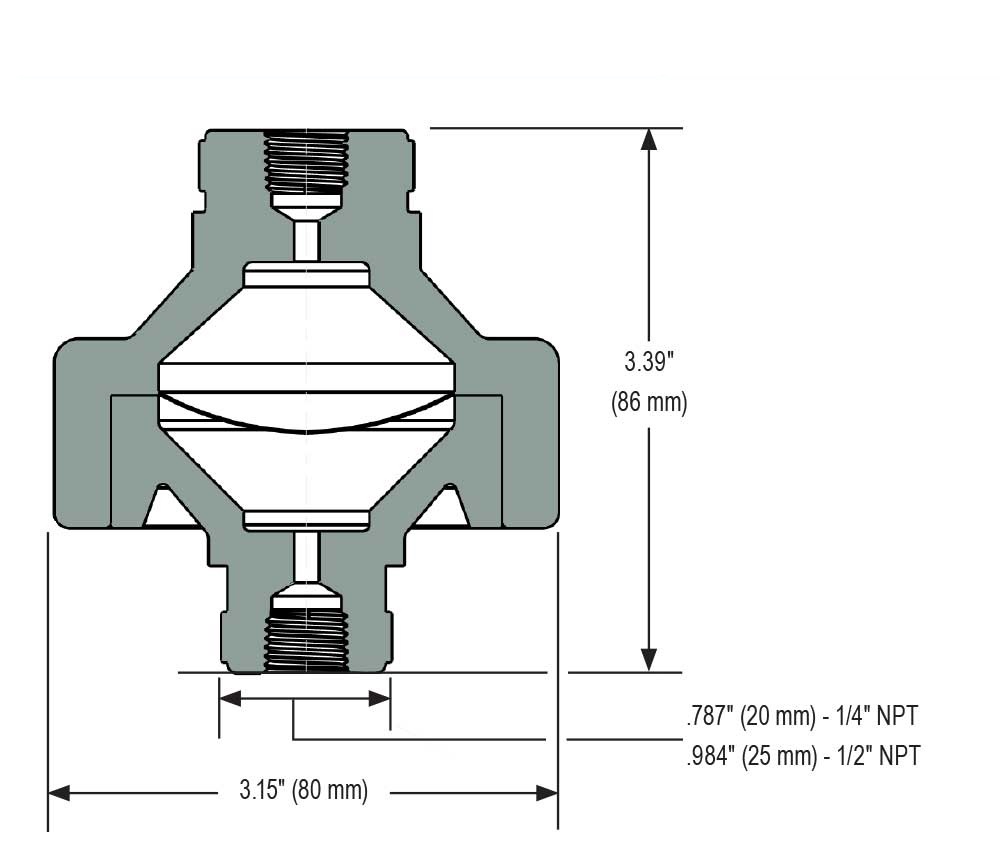

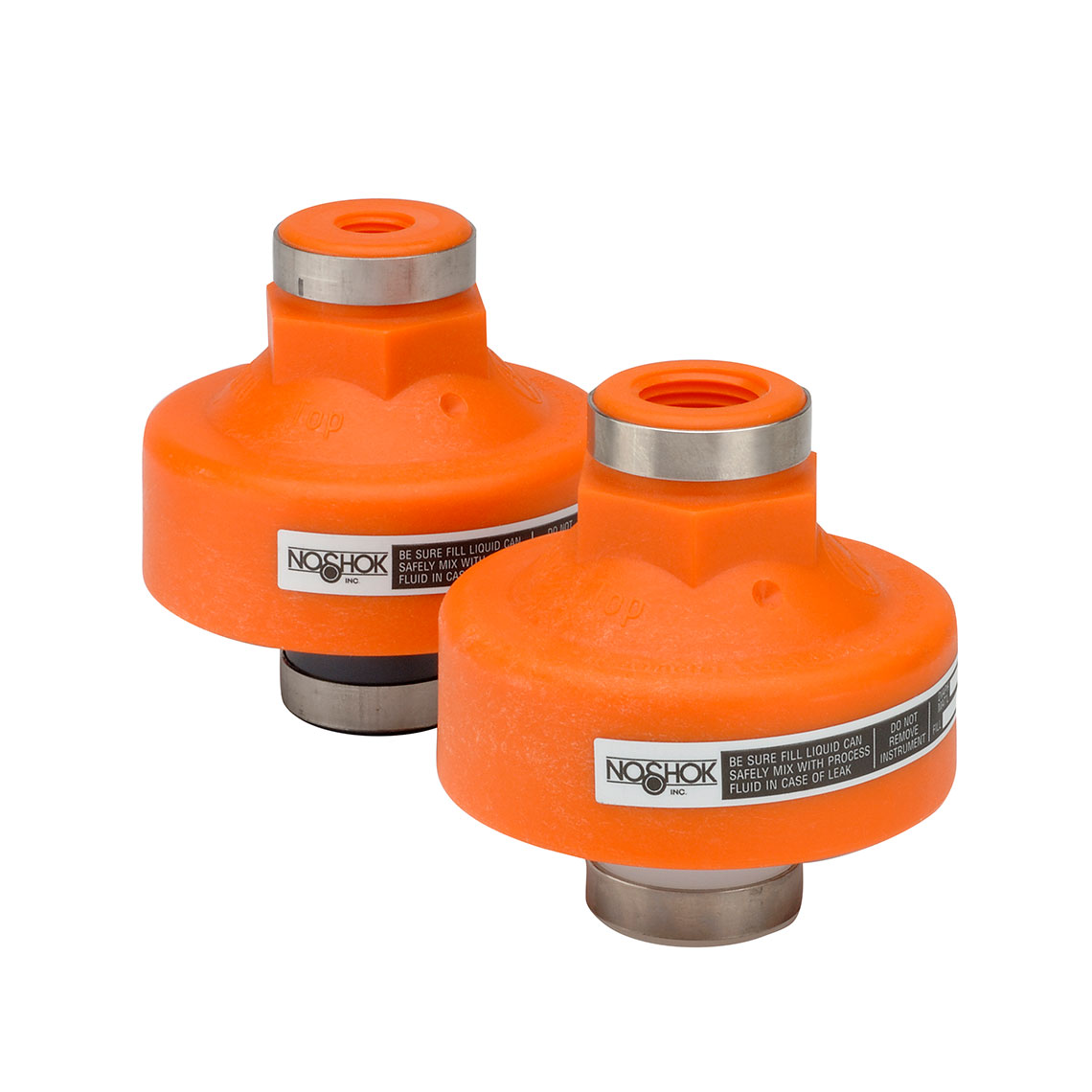

  • Type 5 All Non-Metallic, Non-Replaceable Diaphragm Seals
  • Type 5 All Non-Metallic, Non-Replaceable Diaphragm Seals - 2
  • For wastewater and chemical feed applications, as well as most applications with a corrosive media
  • Constructed of corrosion-resistant PP glass fiber reinforced upper housing and PP, PVC or PVDF lower housing
  • Protects pressure or vacuum instruments used on ultra-pure or highly corrosive fluid lines such as demineralized water, sulfuric acid, hydrochloric acid, and caustics
  • 100% non-metallic wetted parts assures maximum chemical and temperature compatibility
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Part Number

Description

Instrument Connection Size

Diaphragm Material

Process Connection Size

Lower Housing Material

5-02PP-E-02KN N/A Type 5 Polyvinylidene Fluoride (Polyvinylidene Difluoride (PVDF)) Lower Housing Material All Non-Metallic, Non-Replaceable Diaphragm Seal N/A 1/4 in N/A Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side N/A 1/4 in N/A Polyvinylidene Fluoride (PVDF)
5-02PP-E-02PP N/A Type 5 Polypropylene (PP) Lower Housing Material All Non-Metallic, Non-Replaceable Diaphragm Seal N/A 1/4 in N/A Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side N/A 1/4 in N/A Polypropylene (PP)
5-02PP-E-02PV N/A Type 5 Polyvinyl Chloride (Polyvinyl Chloride (PVC)) Lower Housing Material All Non-Metallic, Non-Replaceable Diaphragm Seal N/A 1/4 in N/A Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side N/A 1/4 in N/A Polyvinyl Chloride (PVC)
5-02PP-E-04KN N/A Type 5 Polyvinylidene Fluoride (Polyvinylidene Difluoride (PVDF)) Lower Housing Material All Non-Metallic, Non-Replaceable Diaphragm Seal N/A 1/4 in N/A Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side N/A 1/2 in N/A Polyvinylidene Fluoride (PVDF)
5-02PP-E-04PP N/A Type 5 Polypropylene (PP) Lower Housing Material All Non-Metallic, Non-Replaceable Diaphragm Seal N/A 1/4 in N/A Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side N/A 1/2 in N/A Polypropylene (PP)
5-02PP-E-04PV N/A Type 5 1/4" NPT Instrument Connection, Polypropylene (PP), 1/2" NPT Process Connection, Polyvinyl Chloride (PVC) Seal w/ Polytetrafluoroethylene (PTFE) Coated Ethylene Propylene Diene Monomer (EPDM) Diaphragm N/A 1/4 in N/A Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side N/A 1/2 in N/A Polyvinyl Chloride (PVC)
5-04PP-E-04KN N/A Type 5 Polyvinylidene Fluoride (Polyvinylidene Difluoride (PVDF)) Lower Housing Material All Non-Metallic, Non-Replaceable Diaphragm Seal N/A 1/2 in N/A Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side N/A 1/2 in N/A Polyvinylidene Fluoride (PVDF)
5-04PP-E-04PP N/A Type 5 Polypropylene (PP) Lower Housing Material All Non-Metallic, Non-Replaceable Diaphragm Seal N/A 1/2 in N/A Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side N/A 1/2 in N/A Polypropylene (PP)
5-04PP-E-04PV N/A Type 5 Polyvinyl Chloride (Polyvinyl Chloride (PVC)) Lower Housing Material All Non-Metallic, Non-Replaceable Diaphragm Seal N/A 1/2 in N/A Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side N/A 1/2 in N/A Polyvinyl Chloride (PVC)
