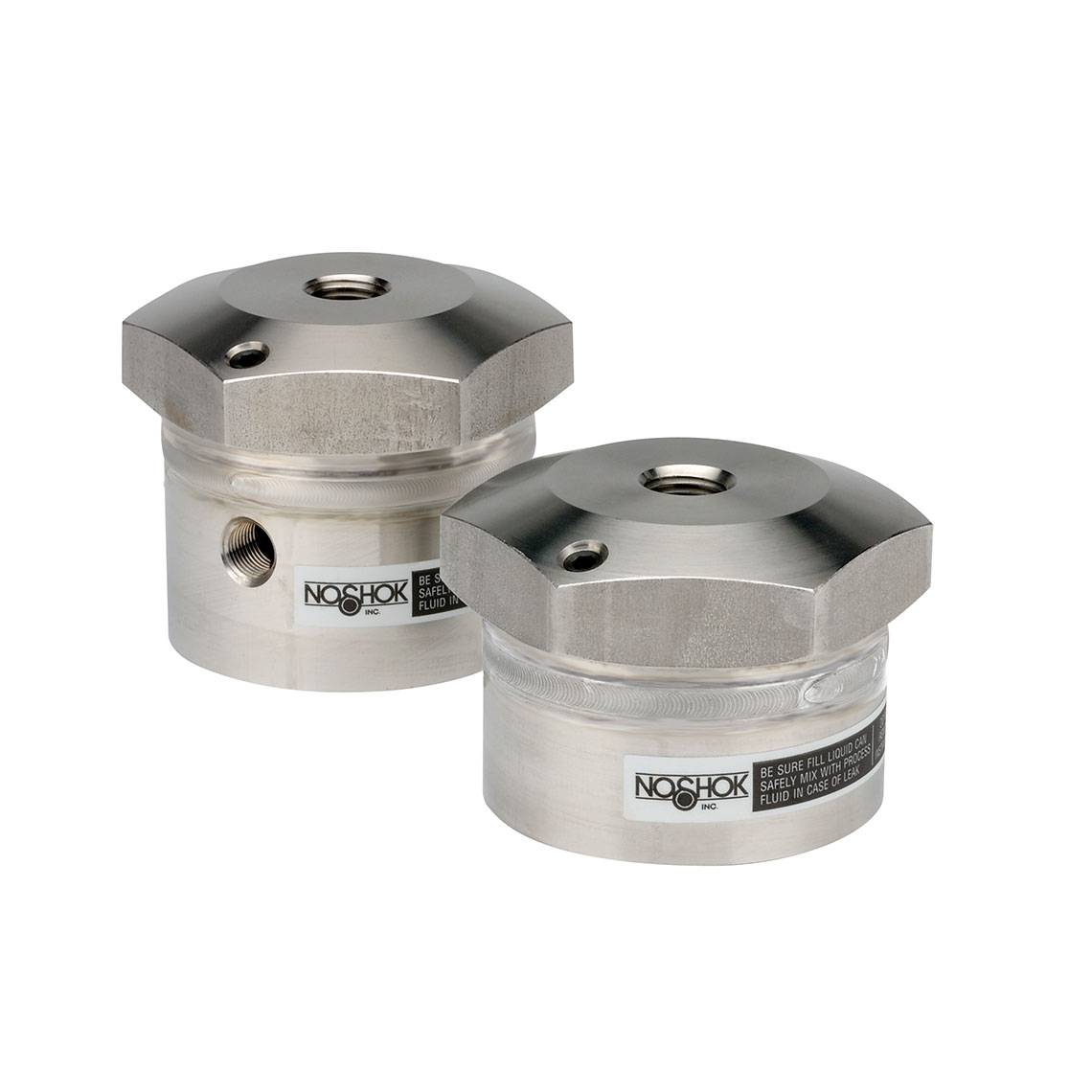

  • Type 29 High Volumetric Displacement, Non-Replaceable Diaphragm Seals
  • An off-line seal with a threaded connection and all welded, all metallic housing design that does not utilize an o-ring or gasket
  • Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
  • Designed with a larger diameter diaphragm for higher displacement capability
  • A variety of upper and lower housing and diaphragm materials are available to suit most applications
  • A flushing port is available to clean wetted areas and prevent process media build up
1 - 25 of 71 | Results Per Page | View | Unit of Measure
1 2 3
Request Information Compare Items

Part Number

Description

Instrument Connection Size

Diaphragm Material

Process Connection Size

29-02S-S-02S N/A 1/4" National Pipe Thread (NPT) Instrument Connection, 316 Stainless Steel, 1/4" National Pipe Thread (NPT) Process Connection, 316 Stainless Steel Seal w/ 316 Stainless Steel Diaphragm, Type 29 N/A 1/4 in N/A 316 Stainless Steel N/A 1/4 in
29-02S-S-04S N/A 1/4" National Pipe Thread (NPT) Instrument Connection, 316 Stainless Steel, 1/2" National Pipe Thread (NPT) Process Connection, 316 Stainless Steel Seal w/ 316 Stainless Steel Diaphragm N/A 1/4 in N/A 316 Stainless Steel N/A 1/2 in
29-02S-S-04S-1F N/A 1/4" National Pipe Thread (NPT) Instrument Connection, 316 Stainless Steel, 1/2" National Pipe Thread (NPT) Process Connection, 316 Stainless Steel, 1/8" National Pipe Thread (NPT) Flushing Connection Seal w/ 316 Stainless Steel Diaphragm N/A 1/4 in N/A 316 Stainless Steel N/A 1/2 in
29-02S-S-06S N/A 1/4" National Pipe Thread (NPT) Instrument Connection, 316 Stainless Steel, 3/4" National Pipe Thread (NPT) Process Connection, 316 Stainless Steel Seal w/ 316 Stainless Steel Diaphragm N/A 1/4 in N/A 316 Stainless Steel N/A 3/4 in
29-02S-S-08S N/A 1" Process Connection Size High Volumetric Displacement, Non-Replaceable Diaphragm Seal, Type 29 N/A 1/4 in N/A 316 Stainless Steel N/A 1 in
29-02S-S-08S-2F N/A 1" Process Connection Size High Volumetric Displacement, Non-Replaceable Diaphragm Seal, Type 29 N/A 1/4 in N/A 316 Stainless Steel N/A 1 in
29-04S-S-02S N/A 1/4" Process Connection Size High Volumetric Displacement, Non-Replaceable Diaphragm Seal, Type 29 N/A 1/2 in N/A 316 Stainless Steel N/A 1/4 in
29-04S-S-04S N/A 1/2" Process Connection Size High Volumetric Displacement, Non-Replaceable Diaphragm Seal, Type 29 N/A 1/2 in N/A 316 Stainless Steel N/A 1/2 in
29-04S-S-04S-1F N/A 1/2" Process Connection Size High Volumetric Displacement, Non-Replaceable Diaphragm Seal, Type 29 N/A 1/2 in N/A 316 Stainless Steel N/A 1/2 in
29-04S-S-04S-2F N/A 1/2" Process Connection Size High Volumetric Displacement, Non-Replaceable Diaphragm Seal, Type 29 N/A 1/2 in N/A 316 Stainless Steel N/A 1/2 in
29-04S-S-08S N/A 1" Process Connection Size High Volumetric Displacement, Non-Replaceable Diaphragm Seal, Type 29 N/A 1/2 in N/A 316 Stainless Steel N/A 1 in
29-02M-M-02M N/A 1/4" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/4" National Pipe Thread (NPT) Process Connection, Type 29 Diaphragm Seal N/A 1/4 in N/A Monel 400 N/A 1/4 in
29-02M-M-02M-1F N/A 1/4" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/4" National Pipe Thread (NPT) Process Connection, 1/8" NPT Flushing Connection, N/A 1/4 in N/A Monel 400 N/A 1/4 in
29-02M-M-02M-1F-P N/A 1/4" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/4" National Pipe Thread (NPT) Process Connection, 1/8" NPT Flushing Connection, Type 29 Diaphragm Seal w/ Optional Flush Port N/A 1/4 in N/A Monel 400 N/A 1/4 in
29-02M-M-02M-2F N/A 1/4" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/4" National Pipe Thread (NPT) Process Connection, 1/4" NPT Flushing Connection, Type 29 Diaphragm Seal N/A 1/4 in N/A Monel 400 N/A 1/4 in
29-02M-M-02M-2F-P N/A 1/4" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/4" National Pipe Thread (NPT) Process Connection, 1/4" NPT Flushing Connection, Type 29 Diaphragm Seal N/A 1/4 in N/A Monel 400 N/A 1/4 in
29-04M-M-04M N/A 1/2" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/2" National Pipe Thread (NPT) Process Connection, Type 29 Diaphragm Seal N/A 1/2 in N/A Monel 400 N/A 1/2 in
29-04M-M-04M-1F N/A 1/2" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/2" National Pipe Thread (NPT) Process Connection, 1/8" NPT Flushing Connection, Type 29 Diaphragm Seal N/A 1/2 in N/A Monel 400 N/A 1/2 in
29-04M-M-04M-1F-P N/A 1/2" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/2" National Pipe Thread (NPT) Process Connection, 1/8" NPT Flushing Connection, Type 29 Diaphragm Seal N/A 1/2 in N/A Monel 400 N/A 1/2 in
29-04M-M-04M-2F N/A 1/2" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/2" National Pipe Thread (NPT) Process Connection, 1/4" NPT Flushing Connection, Type 29 Diaphragm Seal N/A 1/2 in N/A Monel 400 N/A 1/2 in
29-04M-M-04M-2F-P N/A 1/2" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/2" National Pipe Thread (NPT) Process Connection, 1/4" NPT Flushing Connection, Type 29 Diaphragm Seal N/A 1/2 in N/A Monel 400 N/A 1/2 in
29-02M-M-04M N/A 1/4" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/2" National Pipe Thread (NPT) Process Connection, Type 29 Diaphragm Seal N/A 1/4 in N/A Monel 400 N/A 1/2 in
29-02M-M-04M-1F N/A 1/4" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/2" National Pipe Thread (NPT) Process Connection, 1/8" NPT Flushing Connection, Type 29 Diaphragm Seal N/A 1/4 in N/A Monel 400 N/A 1/2 in
29-02M-M-04M-1F-P N/A 1/4" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/2" National Pipe Thread (NPT) Process Connection, 1/8" NPT Flushing Connection, Type 29 Diaphragm Seal w/ Optional Flush Port N/A 1/4 in N/A Monel 400 N/A 1/2 in
29-02M-M-04M-2F N/A 1/4" National Pipe Thread (NPT) Instrument Connection, Monel 400 Upper Housing and Lower Housing & Diaphragm, 1/2" National Pipe Thread (NPT) Process Connection, 1/4" NPT Flushing Connection, Type 29 Diaphragm Seal N/A 1/4 in N/A Monel 400 N/A 1/2 in
