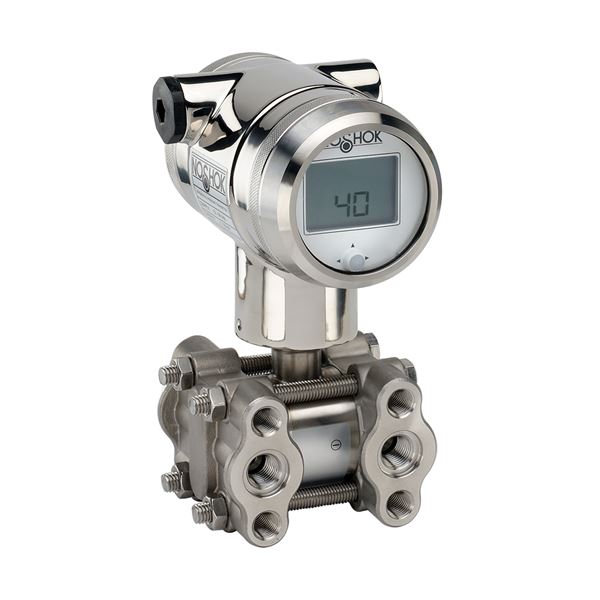

  • PTI40 Photograph
  • Adjustable pressure ranges 1 psig to 300 psig
  • All ranges are user adjustable from vacuum to full scale with standard on board display
  • 4 mA to 20 mA HART® optional pressure transmitter
  • Accuracy ±0.075% of adjusted span
  • 100:1 turn down
  • All Stainless Steel construction with 316 Stainless Steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Pressure Range

Accuracy

Output Signal

Process Connection

Electrical Connection

Item #

Pressure Range

Accuracy

Output Signal

Process Connection

Electrical Connection

Description

CAD

PTI40-1psig-1-43-81-28-TC N/A Min. span 0.15 psi, max. span 1.0 psi N/A ±0.075% of adjusted span with up to 100:1 turn down N/A 4 mA to 20 mA, 2-wire with HART N/A 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves N/A 1/2" National Pipe Thread (NPT) female N/A Premier Accuracy Intelligent Pressure Transmitter, Min. span 0.15 psi, max. span 1.0 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART®, 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves, 1/2" National Pipe Thread (NPT) female, transparent cover N/A CAD Icon (for items table)
PTI40-6psig-1-43-81-28 N/A Min. span 0.15 psi, max. span 6.0 psi N/A ±0.075% of adjusted span with up to 100:1 turn down N/A 4 mA to 20 mA, 2-wire with HART N/A 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves N/A 1/2" National Pipe Thread (NPT) female N/A Premier Accuracy Intelligent Pressure Transmitter, Min. span 0.15 psi, max. span 6.0 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART®, 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves, 1/2" National Pipe Thread (NPT) female N/A CAD Icon (for items table)
PTI40-6psig-1-43-81-28-TC N/A Min. span 0.15 psi, max. span 6.0 psi N/A ±0.075% of adjusted span with up to 100:1 turn down N/A 4 mA to 20 mA, 2-wire with HART N/A 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves N/A 1/2" National Pipe Thread (NPT) female N/A Premier Accuracy Intelligent Pressure Transmitter, Min. span 0.15 psi, max. span 6.0 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART®, 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves, 1/2" National Pipe Thread (NPT) female, transparent cover N/A CAD Icon (for items table)
PTI40-30psig-1-43-81-28 N/A Min. span 0.3 psi, max. span 30 psi N/A ±0.075% of adjusted span with up to 100:1 turn down N/A 4 mA to 20 mA, 2-wire with HART N/A 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves N/A 1/2" National Pipe Thread (NPT) female N/A Premier Accuracy Intelligent Pressure Transmitter, Min. span 0.3 psi, max. span 30 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART®, 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves, 1/2" National Pipe Thread (NPT) female N/A CAD Icon (for items table)
PTI40-30psig-1-43-81-28-TC N/A Min. span 0.3 psi, max. span 30 psi N/A ±0.075% of adjusted span with up to 100:1 turn down N/A 4 mA to 20 mA, 2-wire with HART N/A 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves N/A 1/2" National Pipe Thread (NPT) female N/A Premier Accuracy Intelligent Pressure Transmitter, Min. span 0.3 psi, max. span 30 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART®, 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves, 1/2" National Pipe Thread (NPT) female, transparent cover N/A CAD Icon (for items table)
PTI40-300psig-1-43-81-28 N/A Min. span 3 psi, max. span 300 psi N/A ±0.075% of adjusted span with up to 100:1 turn down N/A 4 mA to 20 mA, 2-wire with HART N/A 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves N/A 1/2" National Pipe Thread (NPT) female N/A Premier Accuracy Intelligent Pressure Transmitter, Min. span 3 psi, max. span 300 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART®, 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves, 1/2" National Pipe Thread (NPT) female N/A CAD Icon (for items table)
PTI40-300psig-1-43-81-28-TC N/A Min. span 3 psi, max. span 300 psi N/A ±0.075% of adjusted span with up to 100:1 turn down N/A 4 mA to 20 mA, 2-wire with HART N/A 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves N/A 1/2" National Pipe Thread (NPT) female N/A Premier Accuracy Intelligent Pressure Transmitter, Min. span 3 psi, max. span 300 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART®, 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves, 1/2" National Pipe Thread (NPT) female, transparent cover N/A CAD Icon (for items table)
PTI40-1psig-1-43-81-28 N/A Min. span 0.15 psi, max. span 1.0 psi N/A ±0.075% of adjusted span with up to 100:1 turn down N/A 4 mA to 20 mA, 2-wire with HART N/A 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves N/A 1/2" National Pipe Thread (NPT) female N/A Premier Accuracy Intelligent Pressure Transmitter, Min. span 0.15 psi, max. span 1.0 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART®, 1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves, 1/2" National Pipe Thread (NPT) female N/A CAD Icon (for items table)
