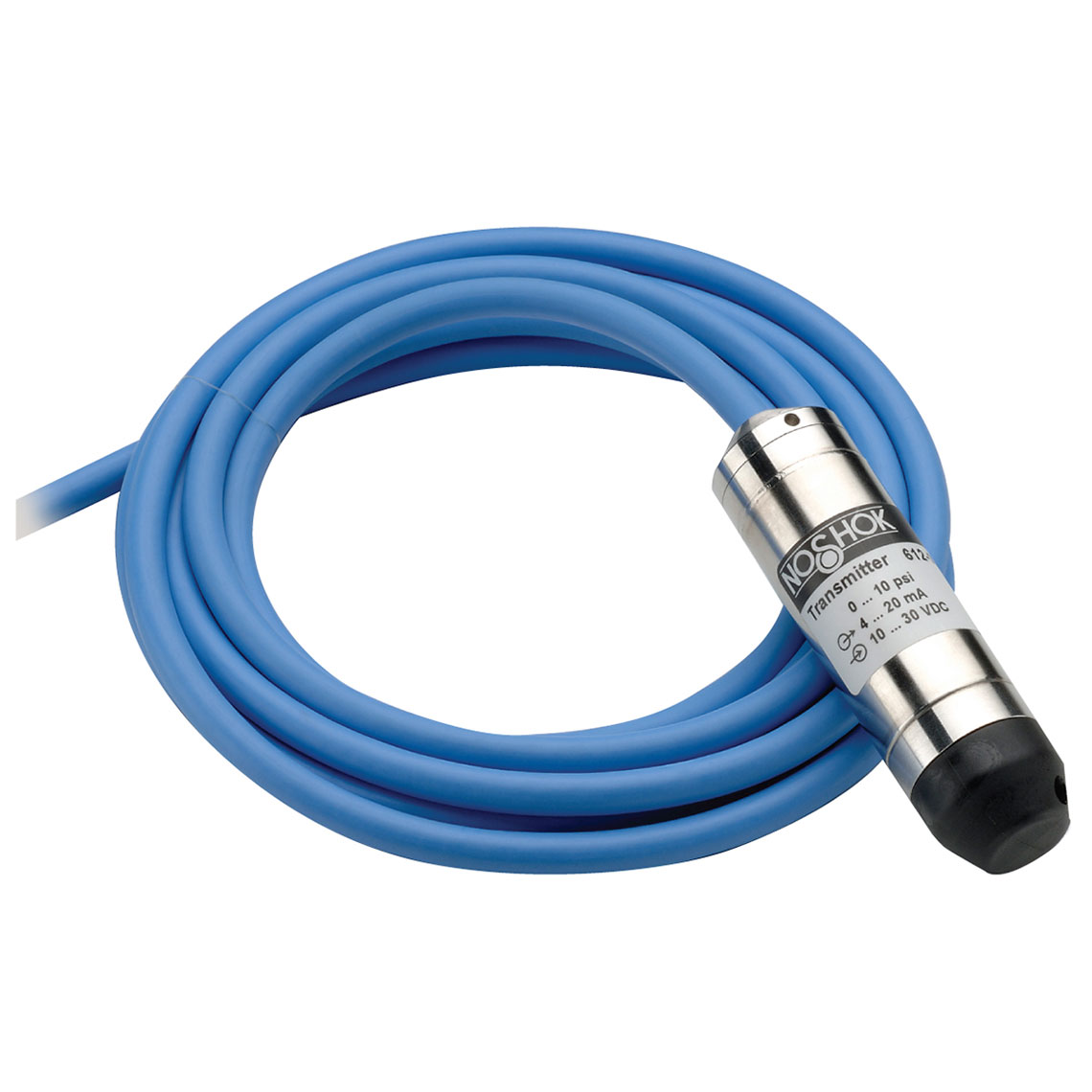

  • 612 Series Submersible Level Transmitters

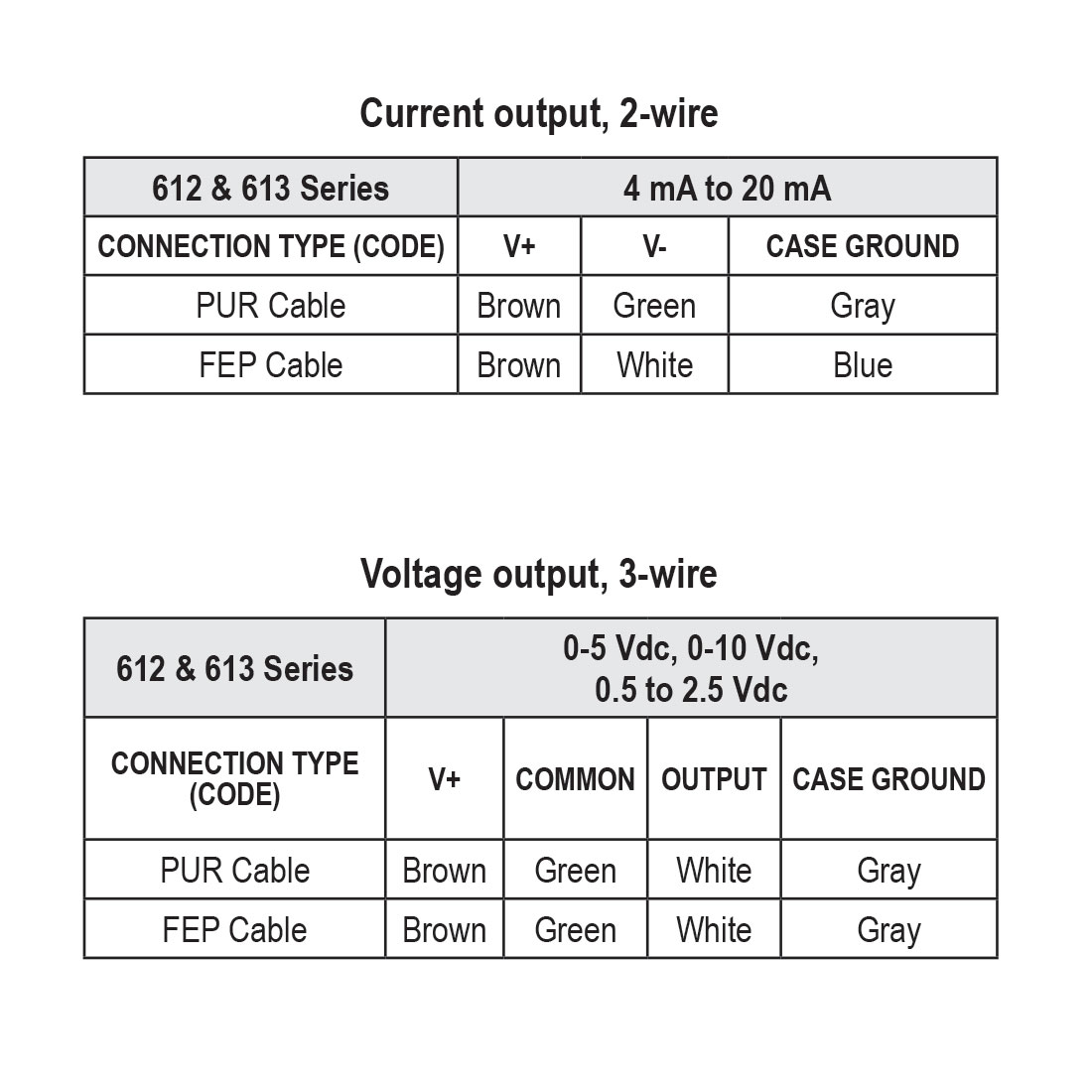

  • 612-Wiring-Charts.jpg
  • Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
  • Current and voltage outputs available
  • 316 Stainless Steel, Polyamide and Polyurethane wetted parts
1 - 25 of 45 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items
Clear Filter

Pressure Range (psig)

Pressure Range (ftH<sub>2</sub>O)

Pressure Range (inH<sub>2</sub>O)

Full Scale Best Fit Straight Line (BFSL) Accuracy (±) (%)

Output Signal

Cable Length (ft)

Part Number

Description

Pressure Range

Full Scale Best Fit Straight Line (BFSL) Accuracy (±)

Output Signal

Cable Length

612-1000-1-1-T-5 N/A 0 to 1,000 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, G1/2B x 1/2" National Pipe Thread (NPT) Male / 1/4" National Pipe Thread (NPT) Female Submersible Pressure Transmitter with 5 ft Polyurethane (PUR) Cable N/A 0 to 1,000 psig2,311.0 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 5 ft
612-100-1-1-N-50 N/A 0 to 100 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 50 ft Polyurethane (PUR) Cable N/A 0 to 100 psig230.8 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 50 ft
612-100-1-1-T-15 N/A 0 to 100 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, G1/2B x 1/2" National Pipe Thread (NPT) Male / 1/4" National Pipe Thread (NPT) Female Submersible Pressure Transmitter with 15 ft Polyurethane (PUR) Cable N/A 0 to 100 psig230.8 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 15 ft
612-100-1-1-T-25 N/A 0 to 100 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, G1/2B x 1/2" National Pipe Thread (NPT) Male / 1/4" National Pipe Thread (NPT) Female Submersible Pressure Transducer with 25 ft Polyurethane (PUR) Cable N/A 0 to 100 psig230.8 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 25 ft
612-100-1-1-T-75 N/A 0 to 100 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, G1/2B x 1/2" National Pipe Thread (NPT) Male / 1/4" National Pipe Thread (NPT) Female Submersible Pressure Transmitter with 75 ft Polyurethane (PUR) Cable N/A 0 to 100 psig230.8 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 75 ft
612-10-1-1-N-100 N/A 0 to 10 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 100 ft Polyurethane (PUR) Cable N/A 0 to 10 psig23.1 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 100 ft
612-10-1-1-N-20 N/A 0 to 10 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 20 ft Polyurethane (PUR) Cable N/A 0 to 10 psig23.1 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 20 ft
612-10-1-1-N-25 N/A 0 to 10 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 25 ft Polyurethane (PUR) Cable N/A 0 to 10 psig23.1 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 25 ft
612-10-1-1-N-26 N/A 0 to 10 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 26 ft Polyurethane (PUR) Cable N/A 0 to 10 psig23.1 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 26 ft
612-10-1-1-N-35 N/A 0 to 10 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 35 ft Polyurethane (PUR) Cable N/A 0 to 10 psig23.1 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 35 ft
612-10-1-1-N-50 N/A 0 to 10 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 50 ft Polyurethane (PUR) Cable N/A 0 to 10 psig23.1 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 50 ft
612-10-1-1-N-70 N/A 0 to 10 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 70 ft Polyurethane (PUR) Cable N/A 0 to 10 psig23.1 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 70 ft
612-10-2-1-N-40 N/A 0 to 10 psig, 0.125% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 40 ft Polyurethane (PUR) Cable N/A 0 to 10 psig23.1 ftH2O N/A 0.125 % N/A 4 mA to 20 mA, 2-wire N/A 40 ft
612-150-1-1-N-100 N/A 0 to 150 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 100 ft Polyurethane (PUR) Cable N/A 0 to 150 psig346.3 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 100 ft
612-150inH2O-1-1-N-50 N/A 0 to 150 inH2O, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 50 ft Polyurethane (PUR) Cable N/A 0 to 150 inH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 50 ft
612-15-1-1-N-100 N/A 0 to 15 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 100 ft Polyurethane (PUR) Cable N/A 0 to 15 psig34.6 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 100 ft
612-15-1-1-N-20 N/A 0 to 15 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 20 ft Polyurethane (PUR) Cable N/A 0 to 15 psig34.6 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 20 ft
612-15-1-1-N-30 N/A 0 to 15 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 30 ft Polyurethane (PUR) Cable N/A 0 to 15 psig34.6 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 30 ft
612-15-1-1-N-50 N/A 0 to 15 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 50 ft Polyurethane (PUR) Cable N/A 0 to 15 psig34.6 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 50 ft
612-15-1-1-N-60 N/A 0 to 15 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 60 ft Polyurethane (PUR) Cable N/A 0 to 15 psig34.6 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 60 ft
612-2-1-1-N-20 N/A 0 to 2 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 20 ft Polyurethane (PUR) Cable N/A 0 to 2 psig4.6 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 20 ft
612-2-1-1-N-25 N/A 0 to 2 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 25 ft Polyurethane (PUR) Cable N/A 0 to 2 psig4.6 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 25 ft
612-2-1-1-N-30 N/A 0 to 2 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 30 ft Polyurethane (PUR) Cable N/A 0 to 2 psig4.6 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 30 ft
612-2-1-1-N-4-DC N/A 0 to 2 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone, 4 ft Polyurethane (PUR) Cable, and Desiccant Cartridge N/A 0 to 2 psig4.6 ftH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 4 ft
612-250inH2O-1-1-N-100 N/A 0 to 250 inH2O, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output Submersible Pressure Transmitter with Nose Cone and 100 ft Polyurethane (PUR) Cable N/A 0 to 250 inH2O N/A 0.25 % N/A 4 mA to 20 mA, 2-wire N/A 100 ft
