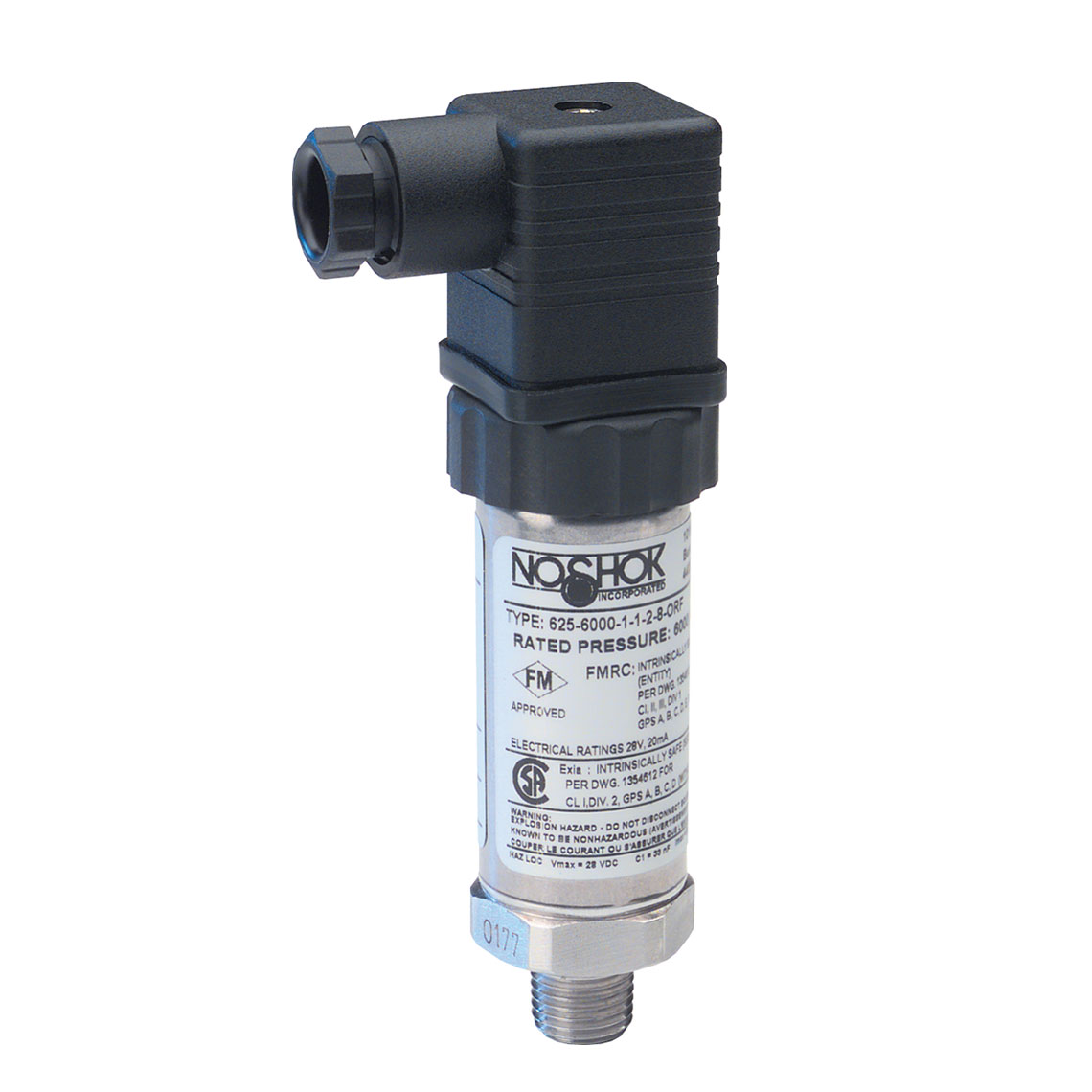

  • 625/626 Series Intrinsically Safe Pressure Transmitters
  • Low pressure ranges for vapor recovery applications, vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
  • Current output
  • 316 and 14-4PH Stainless Steel wetted parts
1 - 25 of 62 | Results Per Page | View | Unit of Measure
1 2 3
Request Information Compare Items
Clear Filter

Pressure Range

Full Scale Best Fit Straight Line (BFSL) Accuracy (±) (%)

Output Signal

Electrical Connection

Part Number

Description

Pressure Range

Full Scale Best Fit Straight Line (BFSL) Accuracy (±)

Process Connections

Electrical Connection

625-10000-1-1-8-8 N/A 0 to 10,000 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 10,000 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-1000-1-1-8-3 N/A 0 to 1,000 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with 6-pin Bayonet - IP65 Electrical Connection N/A 0 to 1,000 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A 6-Pin Bayonet - Ingress Protection (IP65)
625-1000-1-1-8-8 N/A 0 to 1,000 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 1,000 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-1000-2-1-2-1 N/A 0 to 1,000 psig, 0.125% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A with 36" Cable Electrical Connection N/A 0 to 1,000 psig N/A 0.125 % N/A 1/4 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A with 36" Cable
625-100-1-1-2-8 N/A 0 to 100 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 100 psig N/A 0.25 % N/A 1/4 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-100-1-1-8-8 N/A 0 to 100 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 100 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-100-2-1-2-25-ST8 N/A 0 to 100 psig, 0.125% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" National Pipe Thread (NPT) Male Pressure Transmitter with M12 x 1 (4 Pin) and 0.8 mm Stainless Steel Threaded Orifice N/A 0 to 100 psig N/A 0.125 % N/A 1/4 in. Male National Pipe Thread (MNPT) N/A M12 x 1 (4-Pin) Ingress Protection (IP67)
625-100A-1-1-2-8 N/A 0 to 100 psia, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 100 psia N/A 0.25 % N/A 1/4 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-12oz/in2-1-1-8-8 N/A 0 to 12 oz/in², 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 12 oz/in² N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-15000-1-1-2-8 N/A 0 to 15,000 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 15,000 psig N/A 0.25 % N/A 1/4 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-15000-1-1-8-8 N/A 0 to 15,000 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 15,000 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-150-1-1-2-8 N/A 0 to 150 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 150 psig N/A 0.25 % N/A 1/4 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-150-1-1-8-1 N/A 0 to 150 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A with 36" Cable Electrical Connection N/A 0 to 150 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A with 36" Cable
625-150-1-1-8-8 N/A 0 to 150 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 150 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-150-2-1-2-1 N/A 0 to 150 psig, 0.125% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A with 36" Cable Electrical Connection N/A 0 to 150 psig N/A 0.125 % N/A 1/4 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A with 36" Cable
625-150A-1-1-8-8 N/A 0 to 150 psia, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 150 psia N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-15-1-1-2-25-ST8 N/A 0 to 15 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" National Pipe Thread (NPT) Male Pressure Transmitter with M12 x 1 (4 Pin) and 0.8 mm Stainless Steel Threaded Orifice N/A 0 to 15 psig N/A 0.25 % N/A 1/4 in. Male National Pipe Thread (MNPT) N/A M12 x 1 (4-Pin) Ingress Protection (IP67)
625-15-1-1-8-14 N/A 0 to 15 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A with 1/2" NPT Female Conduit Electrical Connection N/A 0 to 15 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A with 1/2" NPT Female Conduit
625-15-1-1-8-8 N/A 0 to 15 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 15 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-15-2-1-8-8 N/A 0 to 15 psig, 0.125% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 15 psig N/A 0.125 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-16oz/in2-1-1-8-1 N/A 0 to 16 oz/in², 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A with 36" Cable Electrical Connection N/A 0 to 16 oz/in² N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A with 36" Cable
625-16oz/in2-1-1-8-8 N/A 0 to 16 oz/in², 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 16 oz/in² N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-2000-1-1-8-14 N/A 0 to 2,000 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A with 1/2" NPT Female Conduit Electrical Connection N/A 0 to 2,000 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A with 1/2" NPT Female Conduit
625-2000-1-1-8-8 N/A 0 to 2,000 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 2,000 psig N/A 0.25 % N/A 1/2 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
625-200-1-1-2-8 N/A 0 to 200 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection N/A 0 to 200 psig N/A 0.25 % N/A 1/4 in. Male National Pipe Thread (MNPT) N/A DIN EN 175301-803 Form A
