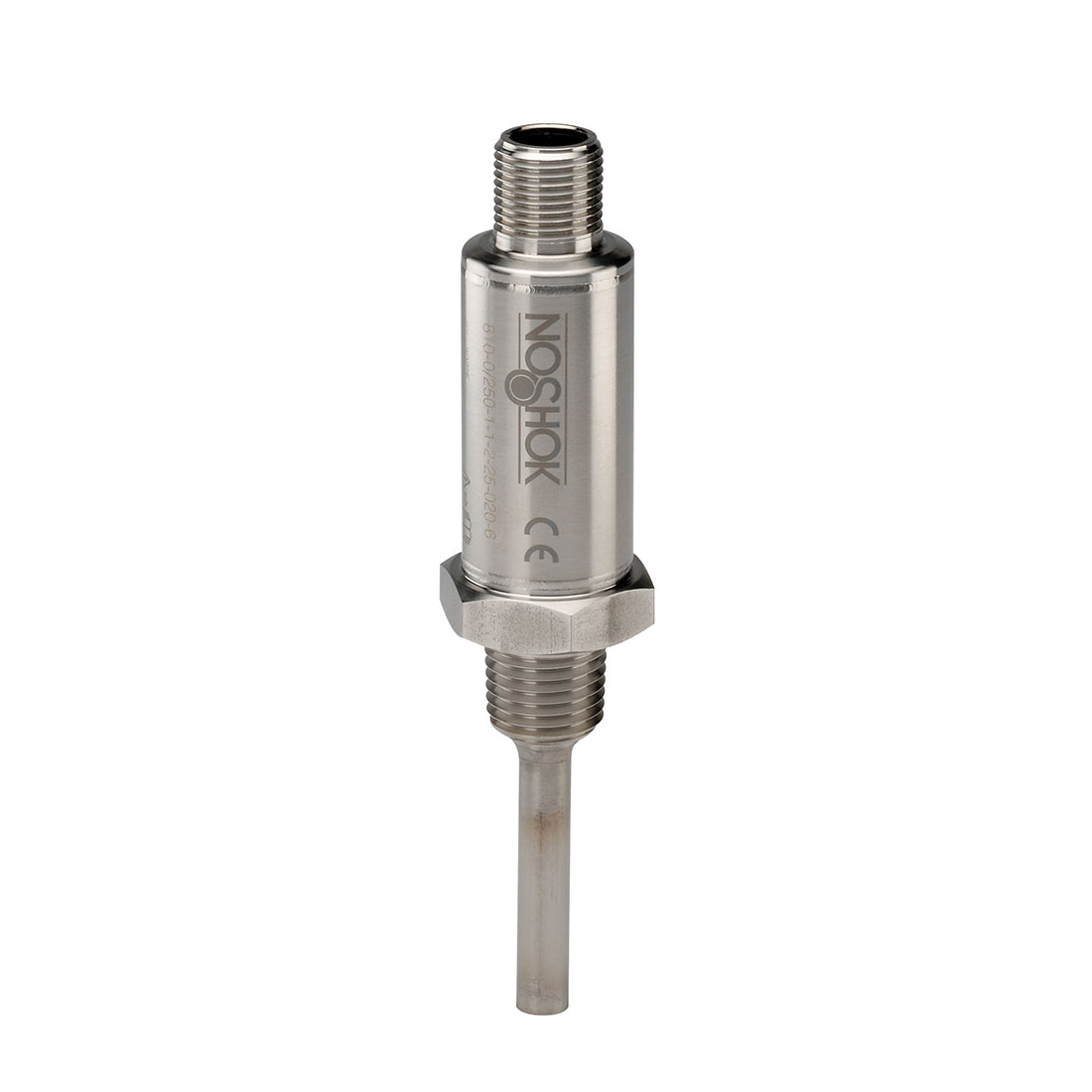

  • 810 Series Compact Temperature Transmitters
  • Proven PT1000 platinum resistance sensor provides reliability, stability and unbeatable performance
  • Standard temperature ranges from -22 ºF to 302 ºF (-30 ºC to 150 ºC)
  • 4 mA to 20 mA transmitter included
1 - 25 of 126 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
Request Information Compare Items
Clear Filter

Low Calibrated Temperature Range

Low Calibrated Temperature Range (ºF)

High Calibrated Temperature Range

High Calibrated Temperature Range (ºF)

Connection Size (in)

Sensor Length (in)

Part Number

Description

Low Calibrated Temperature Range

High Calibrated Temperature Range

Connection Size

Sensor Length

810--22/125-1-1-2-25-010-6 N/A 810 Series Compact Temperature Transmitter, -22/125 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 1.0 in Stem, 6 mm Diameter N/A -22 ºF N/A 125 ºF N/A 1/4 in N/A 1 in
810--22/250-1-1-2-25-010-6 N/A 810 Series Compact Temperature Transmitter, -22/250 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 1.0 in Stem, 6 mm Diameter N/A -22 ºF N/A 250 ºF N/A 1/4 in N/A 1 in
810-0/100-1-1-2-25-010-6 N/A 810 Series Compact Temperature Transmitter, 0/100 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 1.0 in Stem, 6 mm Diameter N/A 0 ºF N/A 100 ºF N/A 1/4 in N/A 1 in
810-0/200-1-1-2-25-010-6 N/A 810 Series Compact Temperature Transmitter, 0/200 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 1.0 in Stem, 6 mm Diameter N/A 0 ºF N/A 200 ºF N/A 1/4 in N/A 1 in
810-0/300-1-1-2-25-010-6 N/A 810 Series Compact Temperature Transmitter, 0/300 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 1.0 in Stem, 6 mm Diameter N/A 0 ºF N/A 300 ºF N/A 1/4 in N/A 1 in
810--22/302-1-1-2-25-010-6 N/A 810 Series Compact Temperature Transmitter, -22/302 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 1.0 in Stem, 6 mm Diameter N/A -22 ºF N/A 302 ºF N/A 1/4 in N/A 1 in
810-L/H-1-1-2-25-010-6 N/A 810 Series Compact Temperature Transmitter, L/H ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 1.0 in Stem, 6 mm Diameter N/A (L) Custom ranges available on request, specify low range (70 ºF minimum span) N/A (H) Custom ranges available on request, specify high range (70 ºF minimum span) N/A 1/4 in N/A 1 in
810--22/125-1-1-2-25-020-6 N/A 810 Series Compact Temperature Transmitter, -22/125 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.0 in Stem, 6 mm Diameter N/A -22 ºF N/A 125 ºF N/A 1/4 in N/A 2 in
810--22/250-1-1-2-25-020-6 N/A 810 Series Compact Temperature Transmitter, -22/250 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.0 in Stem, 6 mm Diameter N/A -22 ºF N/A 250 ºF N/A 1/4 in N/A 2 in
810-0/100-1-1-2-25-020-6 N/A 810 Series Compact Temperature Transmitter, 0/100 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.0 in Stem, 6 mm Diameter N/A 0 ºF N/A 100 ºF N/A 1/4 in N/A 2 in
810-0/200-1-1-2-25-020-6 N/A 810 Series Compact Temperature Transmitter, 0/200 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.0 in Stem, 6 mm Diameter N/A 0 ºF N/A 200 ºF N/A 1/4 in N/A 2 in
810-0/300-1-1-2-25-020-6 N/A 810 Series Compact Temperature Transmitter, 0/300 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.0 in Stem, 6 mm Diameter N/A 0 ºF N/A 300 ºF N/A 1/4 in N/A 2 in
810--22/302-1-1-2-25-020-6 N/A 810 Series Compact Temperature Transmitter, -22/302 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.0 in Stem, 6 mm Diameter N/A -22 ºF N/A 302 ºF N/A 1/4 in N/A 2 in
810-L/H-1-1-2-25-020-6 N/A 810 Series Compact Temperature Transmitter, L/H ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.0 in Stem, 6 mm Diameter N/A (L) Custom ranges available on request, specify low range (70 ºF minimum span) N/A (H) Custom ranges available on request, specify high range (70 ºF minimum span) N/A 1/4 in N/A 2 in
810--22/125-1-1-2-25-025-6 N/A 810 Series Compact Temperature Transmitter, -22/125 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.5 in Stem, 6 mm Diameter N/A -22 ºF N/A 125 ºF N/A 1/4 in N/A 2.5 in
810--22/250-1-1-2-25-025-6 N/A 810 Series Compact Temperature Transmitter, -22/250 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.5 in Stem, 6 mm Diameter N/A -22 ºF N/A 250 ºF N/A 1/4 in N/A 2.5 in
810-0/100-1-1-2-25-025-6 N/A 810 Series Compact Temperature Transmitter, 0/100 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.5 in Stem, 6 mm Diameter N/A 0 ºF N/A 100 ºF N/A 1/4 in N/A 2.5 in
810-0/200-1-1-2-25-025-6 N/A 810 Series Compact Temperature Transmitter, 0/200 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.5 in Stem, 6 mm Diameter N/A 0 ºF N/A 200 ºF N/A 1/4 in N/A 2.5 in
810-0/300-1-1-2-25-025-6 N/A 810 Series Compact Temperature Transmitter, 0/300 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.5 in Stem, 6 mm Diameter N/A 0 ºF N/A 300 ºF N/A 1/4 in N/A 2.5 in
810--22/302-1-1-2-25-025-6 N/A 810 Series Compact Temperature Transmitter, -22/302 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.5 in Stem, 6 mm Diameter N/A -22 ºF N/A 302 ºF N/A 1/4 in N/A 2.5 in
810-L/H-1-1-2-25-025-6 N/A 810 Series Compact Temperature Transmitter, L/H ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.5 in Stem, 6 mm Diameter N/A (L) Custom ranges available on request, specify low range (70 ºF minimum span) N/A (H) Custom ranges available on request, specify high range (70 ºF minimum span) N/A 1/4 in N/A 2.5 in
810--22/125-1-1-2-25-030-6 N/A 810 Series Compact Temperature Transmitter, -22/125 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 3.0 in Stem, 6 mm Diameter N/A -22 ºF N/A 125 ºF N/A 1/4 in N/A 3 in
810--22/250-1-1-2-25-030-6 N/A 810 Series Compact Temperature Transmitter, -22/250 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 3.0 in Stem, 6 mm Diameter N/A -22 ºF N/A 250 ºF N/A 1/4 in N/A 3 in
810-0/100-1-1-2-25-030-6 N/A 810 Series Compact Temperature Transmitter, 0/100 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 3.0 in Stem, 6 mm Diameter N/A 0 ºF N/A 100 ºF N/A 1/4 in N/A 3 in
810-0/200-1-1-2-25-030-6 N/A 810 Series Compact Temperature Transmitter, 0/200 ºF Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 3.0 in Stem, 6 mm Diameter N/A 0 ºF N/A 200 ºF N/A 1/4 in N/A 3 in
